Tieftemp. K.

Neue Logo2 blau
tieftemp 2
tieftemp 5
tieftemp 12
tieftemp 33
Anmerkung:

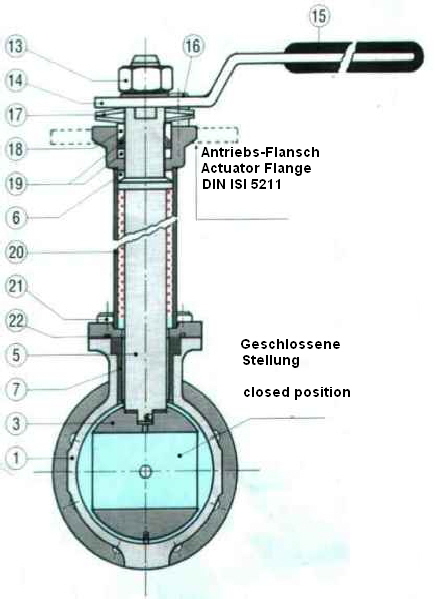

Bei Cryogen - Einsätzen steigt das Drehmoment erheblich. Die Schaltwellen fertigen wir daher in verstärkter Ausführung und in einem Stück.

Annotation:
For Cryogen-service the torque is increasing importantly.
So we manufacture the stem in one piece and designed a stronger stem diameter.



tieftemp 4

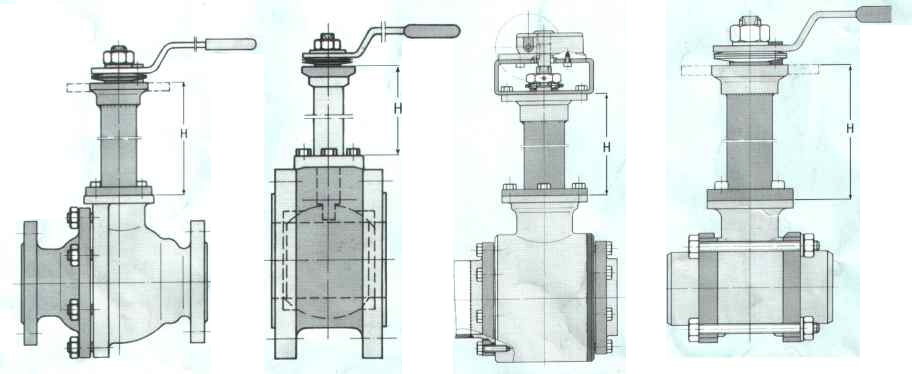

Typ KVK / KVL - Cr ETE
KVA - Cr - ETE
DIN 3202 F 4 / F 5 - F 1 - F 7 ANSI 150-300 DN 25-300



Typ KK - Cr - ETE
DN 15-200
PN 6 - 40



Typ EKH - Cr ETE
DN 50-250; PN 6- 100 Anschweißenden
DIN 3229/ANSI B 36.10M



Typ 240 - Cr - ETE
DN 1/4" -4"; PN6- 16(40)
gew, Anschweiße Enschw. Enden

screwed, Welded - butt - welded,
socket welded ends.

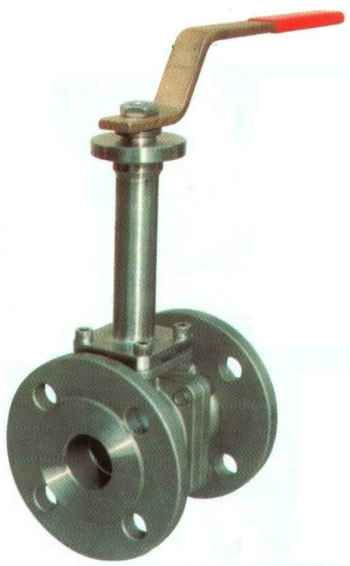

Tieftemperatur - Kugelhähne   -40 / -269° c - Fire safe / anti static
Iow temp. ball valves
DN10-300  Werkstoffe         entsprechend  AD-W10 - ADW2 - ADA2 - DIN 3840 - TRD-024-224-253
PN  6-100  materials          in accordance
Stahl: DIN 17135-SEW089   SEW680   Edelstahl  1.4301 / 1.4308 / 1.4552 / 1.4541 / 1.4439  / 1.4571
